DRV5011

Digital-Latch Hall Effect Sensor

Texas Instruments

DRV5011 Features

* 1 Ultra-small X2SON, SOT-23, or DSBGA package

* High magnetic sensitivity: ±2 mT (typical)

* Robust hysteresis: 4 mT (typical)

* Fast sensing bandwidth: 30-kHz

* VCC operating range: 2.5-V to 5.5-V

* Push-pull CMOS output

* Capable of 5-mA sou

DRV5011 General Description

The DRV5011 device is a digital-latch Hall effect sensor designed for motors and other rotary systems. The device has an efficient low-voltage architecture that operates from 2.5 V to 5.5 V. The device is offered in standard SOT-23, and low-profile X2SON and DSBGA packages. The output is a push-pull.

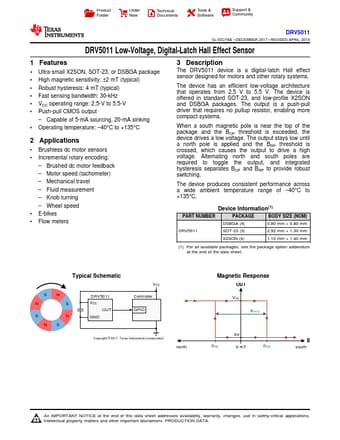

DRV5011 Datasheet (1.41 MB)

DRV5011 Datasheet Preview — Preview of DRV5011 PDF

Datasheet Details

Part number:

DRV5011

Manufacturer:

Texas Instruments ↗

File Size:

1.41 MB

Description:

Digital-latch hall effect sensor.
