DRV5015 Digital-Latch Hall Effect Sensor

DRV5015 Description

Product Folder Order Now Technical Documents Tools & Software Support & Community DRV5015 SBAS915A * JUNE 2018 * REVISED APRIL 20.
The DRV5015 is a low-voltage digital-latch Hall effect sensor designed for high-speed and high-temperature motor applications.

DRV5015 Features

* 1 Digital-latch hall effect sensor
* High magnetic sensitivity:
* DRV5015A1: ±0.7 mT (typical)
* DRV5015A2: ±1.8 mT (typical)
* DRV5015A3: ±1.8 mT (inverted, typical)
* Integrated hysteresis
* Fast 30-kHz sensing bandwidth
* 2.5-V to 5

DRV5015 Applications

* Brushless dc motor sensors
* Incremental rotary encoding:
* Brushed dc motor feedback
* Motor speed (tachometer)
* Mechanical travel
* Fluid measurement
* Human interface knobs
* Wheel speed

📥 Download Datasheet

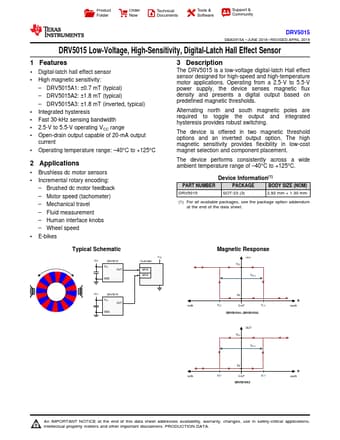

Preview of DRV5015 PDF
