DRV5023 - Digital-Switch Hall Effect Sensor

Name: DRV5023
SKU: DRV5023-1407764

Texas Instruments

📥 Download Datasheet

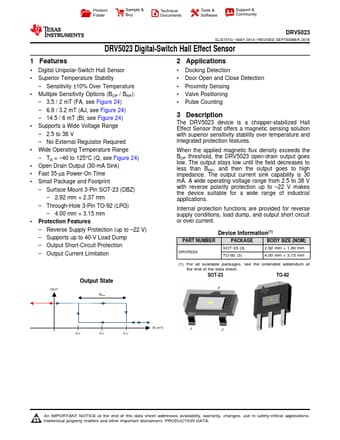

DRV5023 Datasheet Preview — Preview of DRV5023 PDF

Datasheet Details

Part number	DRV5023
Manufacturer	Texas Instruments
File Size	1.23 MB
Description	Digital-Switch Hall Effect Sensor
Datasheet	DRV5023-etcTI.pdf

DRV5023 Product details

Description

The DRV5023 device is a chopper-stabilized Hall Effect Sensor that offers a magnetic sensing solution with superior sensitivity stability over temperature and integrated protection

Features

1 Digital Unipolar-Switch Hall Sensor.
Superior Temperature Stability.
Sensitivity ±10% Over Temperature.
Multiple Sensitivity Options (BOP / BRP):.
3.5 / 2 mT (FA, see Figure 24).
6.9 / 3.2 mT (AJ, see Figure 24).
14.5 / 6 mT (BI, see Figure 24).
Supports a Wide Voltage Range.
2.5 to 38 V.
No External Regulator Required.
Wide Operating Temperature Range.
TA =.
40 to 125°C (Q, see.
