DRV5012 Datasheet - Texas Instruments

DRV5012 Ultra-Low-Power Digital-Latch Hall-Effect Sensor

The DRV5012 device is an ultra-low-power digitallatch Hall effect sensor with a pin-selectable sampling rate. When a south magnetic pole is near the top of the package and the BOP threshold is exceeded, the device drives a low voltage. The output stays low until a north pole is applied and the BRP t.

DRV5012 Features

* 1 Industry-Leading Low-Power Consumption

* Pin-Selectable Sampling Rate:

* SEL = Low: 20 Hz Using 1.3 µA (1.8 V)

* SEL = High: 2.5 kHz Using 142 µA (1.8 V)

* 1.65- to 5.5-V Operating VCC Range

* High Magnetic Sensitivity: ±2 mT (Typical)

* Rob

DRV5012-etcTI.pdf

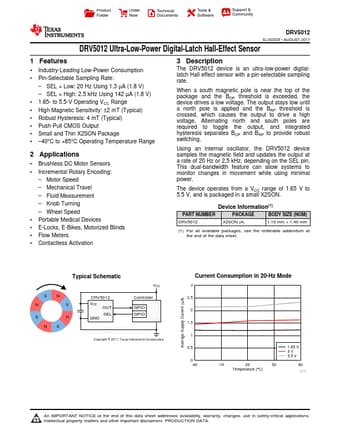

Preview of DRV5012 PDF
DRV5012 Datasheet Preview Page 2 DRV5012 Datasheet Preview Page 3

Datasheet Details

Part number:

DRV5012

Manufacturer:

Texas Instruments ↗

File Size:

1.03 MB

Description:

Ultra-low-power digital-latch hall-effect sensor.
