DRV5033 - Digital-Omnipolar-Switch Hall Effect Sensor

Texas Instruments

The DRV5033 by Texas Instruments is a Digital-Omnipolar-Switch Hall Effect Sensor. Below is the official datasheet preview.

📥 Download Datasheet

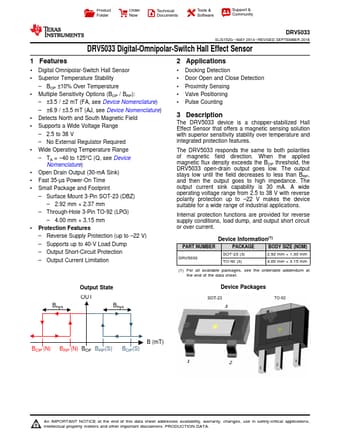

DRV5033 Digital-Omnipolar-Switch Hall Effect Sensor by Texas Instruments - Datasheet Preview — Official preview page of the **DRV5033** Digital-Omnipolar-Switch Hall Effect Sensor datasheet (Texas Instruments).

Datasheet Details

Part number	DRV5033
Manufacturer	Texas Instruments
File Size	1.29 MB
Description	Digital-Omnipolar-Switch Hall Effect Sensor
Datasheet	DRV5033-etcTI.pdf
Additional preview pages of the DRV5033 datasheet.

DRV5033 Product details

Description

The DRV5033 device is a chopper-stabilized Hall Effect Sensor that offers a magnetic sensing solution with superior sensitivity stability over temperature and integrated protection

Features

1 Digital Omnipolar-Switch Hall Sensor.
Superior Temperature Stability.
BOP ±10% Over Temperature.
Multiple Sensitivity Options (BOP / BRP):.
±3.5 / ±2 mT (FA, see Device Nomenclature).
±6.9 / ±3.5 mT (AJ, see Device Nomenclature).
Detects North and South Magnetic Field.
Supports a Wide Voltage Range.
2.5 to 38 V.
No External Regulator Required.
Wide Operating Temperature Range.
TA =.
