DRV5032 Ultra-Low-Power Digital-Switch Hall Effect Sensor

DRV5032 Description

DRV5032 SLVSDC7G * APRIL 2017 * REVISED JULY 2024 DRV5032 Ultra-Low-Power Digital-Switch Hall Effect Sensor 1 .
The DRV5032 device is an ultra-low-power digitalswitch Hall effect sensor, designed for the most compact and battery-sensitive systems.

DRV5032 Features

* Industry-leading ultra-low power consumption
* 5Hz version: 0.54µA
* 20Hz versions: 1.3µA
* 80Hz version: 5.2µA
* Operating VCC range: 1.65V to 5.5V
* Operating temperature range:
* 40°C to +85°C
* Magnetic threshold options (maximum B

DRV5032 Applications

* Battery-critical position sensing
* Electricity meter tamper detection
* Cell Phone, laptop, or tablet case sensing
* E-locks, smoke detectors, appliances
* Medical devices, IoT systems
* Valve or solenoid position detection
* Contactless dia

📥 Download Datasheet

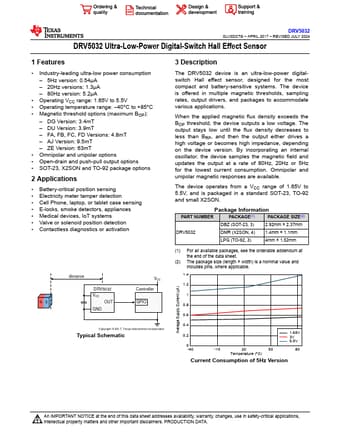

Preview of DRV5032 PDF
datasheet Preview Page 2 datasheet Preview Page 3
