DS90UB927Q-Q1 - 5-MHz to 85-MHz 24-bit Color FPD-Link3 Serializer

Datasheet Summary

Description

The DS90UB927Q-Q1 serializer, in conjunction with a DS90UB928Q-Q1 or DS90UB926Q-Q1 deserializer, provides a complete digital interface for concurrent transmission of high-speed video, audio, and control data for automotive display and image sensing applications.

Features

  • 1 Bidirectional Control Channel Interface with I2Ccompatible Serial Control Bus.
  • Low EMI FPD-Link Video Input.
  • Supports High Definition (720p) Digital Video Format.
  • 5-MHz to 85-MHz PCLK Supported.
  • RGB888 + VS, HS, DE and I2S Audio Supported.
  • Up to 4 I2S Digital Audio Inputs for Surround Sound.

📥 Download Datasheet

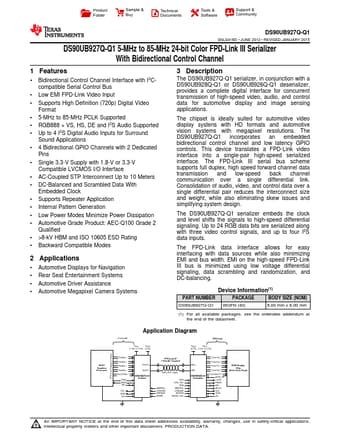

Datasheet preview – DS90UB927Q-Q1

Datasheet Details

Part number DS90UB927Q-Q1
Manufacturer Texas Instruments
File Size 1.34 MB
Description 5-MHz to 85-MHz 24-bit Color FPD-Link3 Serializer
Datasheet download datasheet DS90UB927Q-Q1 Datasheet
Additional preview pages of the DS90UB927Q-Q1 datasheet.
