INA290

Ultra-Precise Current-Sense Amplifier

INA290 Features

* 1 Wide common-mode voltage:

* Operational voltage: 2.7 V to 120 V

* Survival voltage:

* 20 V to +122 V

* Excellent CMRR:

* 160-dB DC

* 85-dB AC at 50 kHz

* Accuracy

* Gain:

* Gain error: ±0.1% (maximum)

* Gain dr

INA290 General Description

The INA290 is an ultra-precise current sense amplifier that can measure voltage drops across shunt resistors over a wide common-mode range from 2.7 V to 120 V. It is in a highly space-efficient SC-70 package with a PCB footprint of only 2.0 mm × 2.1 mm. The ultra-precise current measurement accuracy.

INA290 Datasheet (848.14 KB)

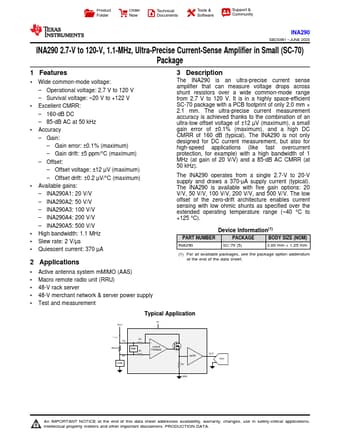

Preview of INA290 PDF

Datasheet Details

Part number:

INA290

Manufacturer:

Texas Instruments ↗

File Size:

848.14 KB

Description:

Ultra-precise current-sense amplifier.
Product Folder Order Now Technical Documents Tools & Software Support & Community INA290 SBOS961

* JUNE 2020 INA290 2.7-V to 120-V, 1.1-M.
