INA293

High-Precision Current Sense Amplifier

INA293 Features

* 1 Wide common-mode voltage:

* Operational voltage:

* 4 V to +110 V

* Survival voltage:

* 20 V to +120 V

* Excellent CMRR:

* 160-dB DC-CMRR

* 85-dB AC-CMRR at 50 kHz

* Accuracy:

* Gain:

* Gain error: ±0.15% (maximu

INA293 General Description

The INA293 is a high-precision current sense amplifier that can measure voltage drops across shunt resistors over a wide common-mode range from

*4 V to 110 V. The negative common-mode voltage allows the device to operate below ground, thus accommodating precise measurement of recirculating c.

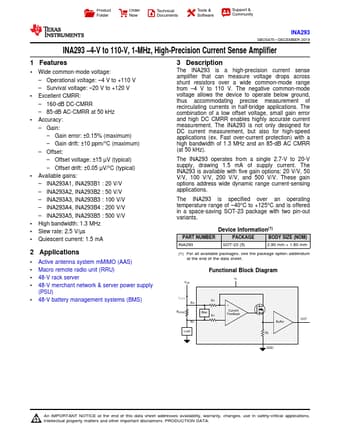

INA293 Datasheet (1.48 MB)

Preview of INA293 PDF

Datasheet Details

Part number:

INA293

Manufacturer:

Texas Instruments ↗

File Size:

1.48 MB

Description:

High-precision current sense amplifier.
Product Folder Order Now Technical Documents Tools & Software Support & Community INA293 SBOS470

* DECEMBER 2019 INA293

*4-V to 1.
