INA818

Precision Instrumentation Amplifier

Texas Instruments

INA818 Features

* 1 Low offset voltage: 10 µV (typ), 35 µV (max)

* Gain drift: 5 ppm/°C (G = 1), 35 ppm/°C (G > 1) (max)

* Noise: 8 nV/√Hz

* Bandwidth: 2 MHz (G = 1), 270 kHz (G = 100)

* Stable with 1-nF capacitive loads

* Inputs protected up to ±60 V

* Common-

INA818 General Description

The INA818 is a high-precision instrumentation amplifier that offers low power consumption and operates over a very wide single-supply or dualsupply range. A single external resistor sets any gain from 1 to 10000. The device offers high precision as a result of super-beta input transistors, which pr.

INA818 Datasheet (1.37 MB)

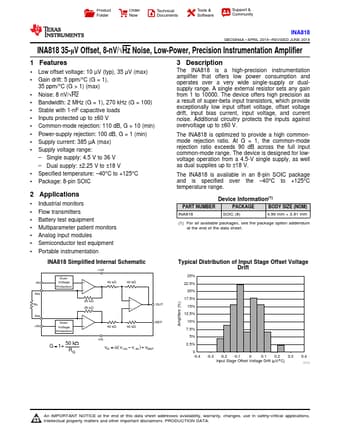

INA818 Datasheet Preview — Preview of INA818 PDF

Datasheet Details

Part number:

INA818

Manufacturer:

Texas Instruments ↗

File Size:

1.37 MB

Description:

Precision instrumentation amplifier.
Product Folder Order Now Technical Documents Tools & Software Support & Community INA818 SBOS894A

* APRIL 2019

* REVISED JUNE 201.
