INA-01100 - Silicon Bipolar MMIC Amplifier

INA-01100 Description

Low Noise, Cascadable Silicon␣ Bipolar MMIC Amplifier Technical Data INA-01100 .
The INA-01100 is a low-noise silicon bipolar Monolithic Microwave Integrated Circuit (MMIC) feedback amplifier chip.

INA-01100 Features

* Cascadable 50 Ω Gain Block
* Low Noise Figure: 1.7 dB Typical at 100 MHz
* High Gain: 32.5 dB Typical at 100 MHz
* 3 dB Bandwidth: DC to 500␣ MHz
* Unconditionally Stable (k>1) The INA series of MMICs is fabricated using HP’s 10 GHz fT, 25 GHz fMAX, ISOSAT™

INA-01100 Applications

* that require high gain and low noise IF or RF amplification. The recommended assembly procedure is gold-eutectic die attach

📥 Download Datasheet

Preview of INA-01100 PDF

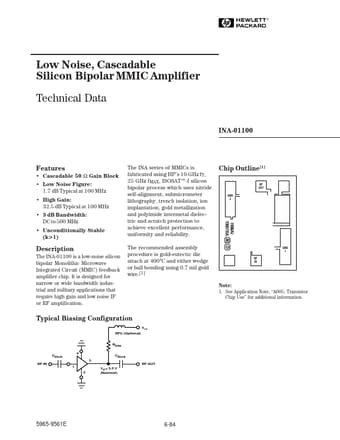

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
INA-01100
Manufacturer
HP
File Size
48.92 KB
Datasheet
INA-01100-HP.pdf
Description
Silicon Bipolar MMIC Amplifier
