INA-02100 - Silicon Bipolar MMIC Amplifier

INA-02100 Description

Low Noise, Cascadable Silicon Bipolar MMIC Amplifier Technical Data INA-02100 .
The INA-02100 is a low-noise silicon bipolar Monolithic Microwave Integrated Circuit (MMIC) feedback amplifier chip.

INA-02100 Features

* Cascadable 50 Ω Gain Block
* Low Noise Figure: 2.0 dB Typical at 0.5 GHz
* High Gain: 31.5 dB Typical at 0.5 GHz 25.0 dB Typical at 1.5 GHz
* 3 dB Bandwidth: DC to 1.0 GHz

INA-02100 Applications

* that require high gain and low noise IF or RF amplification. The INA series of MMICs is fabricated using HP’s 10 GHz fT, 25 GHz fMAX, ISOSAT™-I silicon bipolar process which uses nitride self-alignment, submicrometer lithography, trench isolation, ion implantation, gold metallization and polyimide

📥 Download Datasheet

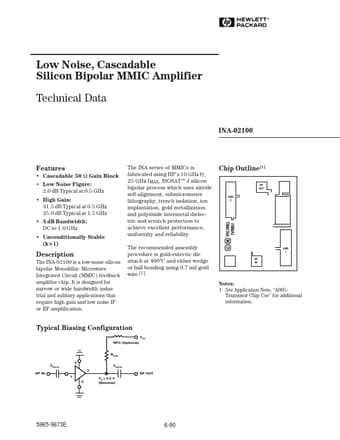

Preview of INA-02100 PDF
