INA-03100 - Silicon Bipolar MMIC Amplifier

INA-03100 Description

Low Noise, Cascadable Silicon Bipolar MMIC Amplifier Technical Data INA-03100 .
The INA-03100 is a low-noise silicon bipolar Monolithic Microwave Integrated Circuit (MMIC) feedback amplifier chip.

INA-03100 Features

* Cascadable 50 Ω Gain Block
* Low Noise Figure: 2.5 dB Typical at 1.5 GHz
* High Gain: 26.0 dB Typical at 2.8 GHz
* 3 dB Bandwidth: DC to 2.8 GHz
* Unconditionally Stable (k>1)

INA-03100 Applications

* that require high gain and low noise IF or RF amplification with minimum power consumption. The INA series of MMICs is fabricated using HP’s 10 GHz fT, 25 GHz fMAX, ISOSAT™-I silicon bipolar process which uses nitride self-alignment, submicrometer lithography, trench isolation, ion implantation, go

📥 Download Datasheet

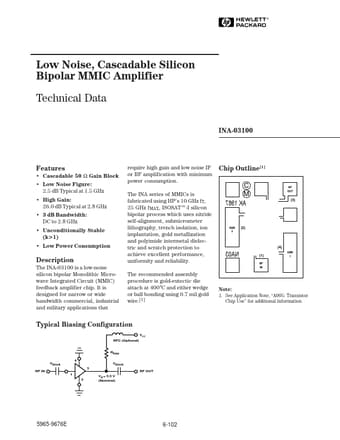

Preview of INA-03100 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
INA-03100
Manufacturer
HP
File Size
44.84 KB
Datasheet
INA-03100-HP.pdf
Description
Silicon Bipolar MMIC Amplifier
