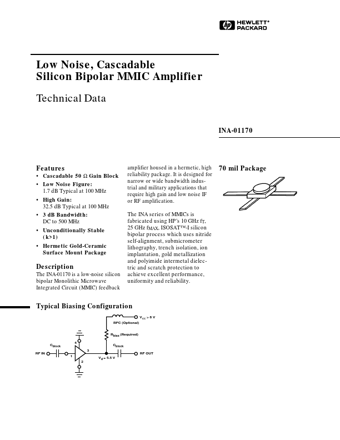

INA-01170 Datasheet, Amplifier, HP

INA-01170 Features

• Amplifier
• Cascadable 50 Ω Gain Block
• Low Noise Figure: 1.7 dB Typical at 100 MHz
• High Gain: 32.5 dB Typical at 100 MHz
• 3 dB Bandwidth: DC to 500 MHz
<

PDF File Details

Part number:

INA-01170

Manufacturer:

HP

File Size:

39.00kb

Download:

📄 Datasheet

Description:

Silicon bipolar mmic amplifier. The INA-01170 is a low-noise silicon bipolar Monolithic Microwave Integrated Circuit (MMIC) feedback amplifier housed in a hermetic,

INA-01170 Application

• Applications that require high gain and low noise IF or RF amplification. The INA series of MMICs is fabricated using HP’s 10 GHz fT, 25 GHz fMAX, I
