INA-03184 - Silicon Bipolar MMIC Amplifier

📥 Download Datasheet

INA-03184 Datasheet Preview — Preview of INA-03184 PDF

Datasheet Details

Part number: INA-03184
Manufacturer: HP
File Size: 29.82 KB
Datasheet: INA-03184-HP.pdf
Description: Silicon Bipolar MMIC Amplifier

INA-03184 Product details

Description

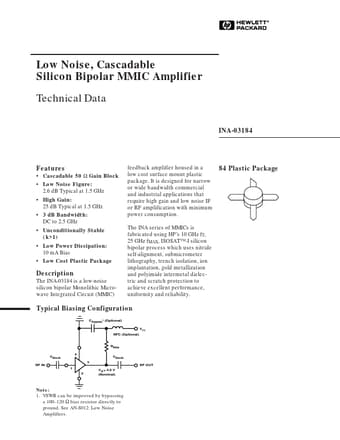

The INA-03184 is a low-noise silicon bipolar Monolithic Microwave Integrated Circuit (MMIC) feedback amplifier housed in a low cost surface mount plastic package.It is designed for narrow or wide bandwidth commercial and industrial applications that require high gain and low noise IF or RF amplification with minimum power consumption.84 Plastic Package The INA series of MMICs is fabricated using HP’s 10 GHz fT, 25 GHz fMAX, IS

Features

Cascadable 50 Ω Gain Block.
Low Noise Figure: 2.6 dB Typical at 1.5 GHz.
High Gain: 25 dB Typical at 1.5 GHz.
3 dB Bandwidth: DC to 2.5 GHz.
Unconditionally Stable (k>1).
Low Power Dissipation: 10 mA Bias.
Low Cost Plastic Package.
