INA827

Instrumentation Amplifier

INA827 Features

* 1 Eliminates Errors from External Resistors at Gain of 5

* Common-Mode Range Goes Below Negative Supply

* Input Protection: Up to ±40 V

* Rail-to-Rail Output

* Outstanding Precision:

* Common-Mode Rejection: 88 dB, minimum

* Low Offset Voltage

INA827 General Description

The INA827 is a low-cost instrumentation amplifier (INA) that offers extremely low power consumption and operates over a very wide single- or dual-supply range. The device is optimized for the lowest possible gain drift of only 1 ppm per degree Celsius in G = 5, which requires no external resistor. .

INA827 Datasheet (1.41 MB)

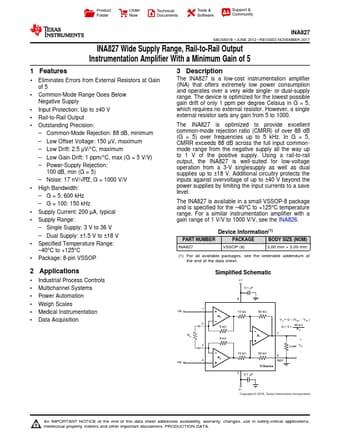

Preview of INA827 PDF

Datasheet Details

Part number:

INA827

Manufacturer:

Texas Instruments ↗

File Size:

1.41 MB

Description:

Instrumentation amplifier.
Product Folder Order Now Technical Documents Tools & Software Support & Community INA827 SBOS631B

* JUNE 2012

* REVISED NOVEMBER .
