ISO3080 - 5-V Full- and Half-Duplex RS-485 Transceivers

Texas Instruments

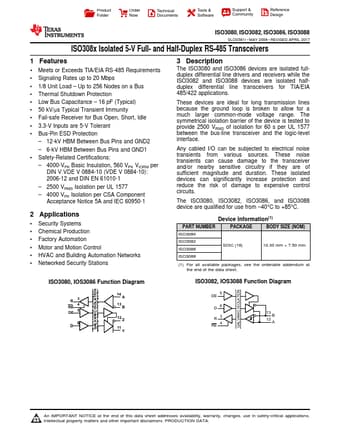

ISO3080 Datasheet Preview — Preview of ISO3080 PDF

Datasheet Details

Part number	ISO3080
Manufacturer	Texas Instruments ↗
File Size	1.31 MB
Description	5-V Full- and Half-Duplex RS-485 Transceivers
Datasheet	ISO3080-etcTI.pdf

ISO3080 Product details

Description

The ISO3080 and ISO3086 devices are isolated fullduplex differential line drivers and receivers while the ISO3082 and ISO3088 devices are isolated halfduplex differential line transceivers for TIA/EIA 485/422 applications.

Features

1 Meets or Exceeds TIA/EIA RS-485 Requirements.
Signaling Rates up to 20 Mbps.
1/8 Unit Load.
Up to 256 Nodes on a Bus.
Thermal Shutdown Protection.
Low Bus Capacitance.
16 pF (Typical).
50 kV/μs Typical Transient Immunity.
Fail-safe Receiver for Bus Open, Short, Idle.
3.3-V Inputs are 5-V Tolerant.
Bus-Pin ESD Protection.
12-kV HBM Between Bus Pins and GND2.
6-kV HBM Between Bus.
