ISO3086T

5-V RS-485 Transceiver

ISO3086T Features

* 1 Meets or Exceeds TIA/EIA-485-A

* Signaling Rate up to 20 Mbps

* 1/8 Unit Load

* Up to 256 Nodes on a Bus

* Thermal Shutdown Protection

* Typical Efficiency > 60% (ILOAD = 100 mA) - see SLUU469

* Low Bus Capacitance 7 pF (Typ)

* 50-kV

ISO3086T General Description

The ISO3086T is an isolated differential line transceiver with integrated oscillator outputs that provide the primary voltage for an isolation transformer. The device is a full-duplex differential line transceiver for RS-485 and RS-422 applications that can easily be configured for half-duplex opera.

ISO3086T Datasheet (1.78 MB)

Rating: 1 ★ (1 votes)

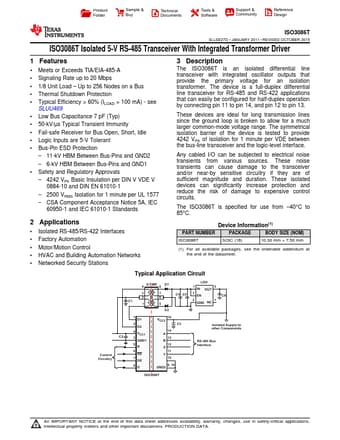

Preview of ISO3086T PDF

Datasheet Details

Part number:

ISO3086T

Manufacturer:

Texas Instruments ↗

File Size:

1.78 MB

Description:

5-v rs-485 transceiver.
