ISO3088, ISO3080 - 5-V Full- and Half-Duplex RS-485 Transceivers

Texas Instruments

ISO3088 Datasheet Preview — This datasheet PDF includes multiple part numbers: ISO3088, ISO3080. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	ISO3088, ISO3080
Manufacturer	Texas Instruments ↗
File Size	1.31 MB
Description	5-V Full- and Half-Duplex RS-485 Transceivers
Datasheet	ISO3080-etcTI.pdf
Note	This datasheet PDF includes multiple part numbers: ISO3088, ISO3080. Please refer to the document for exact specifications by model.

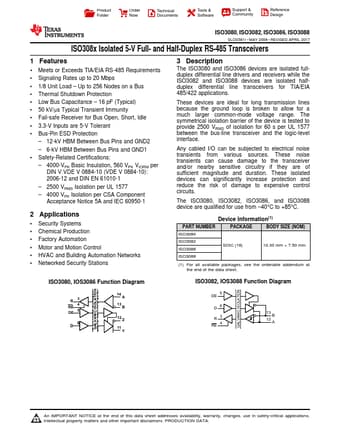

ISO3088 Product details

Description

The ISO3080 and ISO3086 devices are isolated fullduplex differential line drivers and receivers while the ISO3082 and ISO3088 devices are isolated halfduplex differential line transceivers for TIA/EIA 485/422 applications.

Features

1 Meets or Exceeds TIA/EIA RS-485 Requirements.
Signaling Rates up to 20 Mbps.
1/8 Unit Load.
Up to 256 Nodes on a Bus.
Thermal Shutdown Protection.
Low Bus Capacitance.
16 pF (Typical).
50 kV/μs Typical Transient Immunity.
Fail-safe Receiver for Bus Open, Short, Idle.
3.3-V Inputs are 5-V Tolerant.
Bus-Pin ESD Protection.
12-kV HBM Between Bus Pins and GND2.
6-kV HBM Between Bus.
