ISO3082, ISO3080 Datasheet - Texas Instruments

ISO3082 5-V Full- and Half-Duplex RS-485 Transceivers

The ISO3080 and ISO3086 devices are isolated fullduplex differential line drivers and receivers while the ISO3082 and ISO3088 devices are isolated halfduplex differential line transceivers for TIA/EIA 485/422 applications. These devices are ideal for long transmission lines because the ground loop i.

ISO3082 Features

* 1 Meets or Exceeds TIA/EIA RS-485 Requirements

* Signaling Rates up to 20 Mbps

* 1/8 Unit Load

* Up to 256 Nodes on a Bus

* Thermal Shutdown Protection

* Low Bus Capacitance

* 16 pF (Typical)

* 50 kV/μs Typical Transient Immunity

ISO3080-etcTI.pdf

This datasheet PDF includes multiple part numbers: ISO3082, ISO3080. Please refer to the document for exact specifications by model.

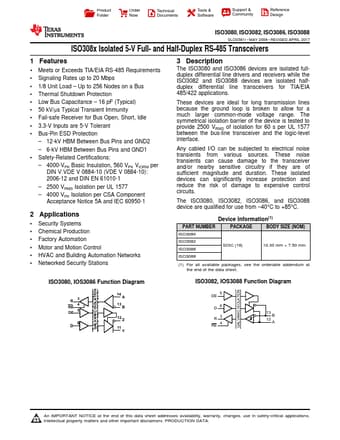

ISO3082 Datasheet Preview Page 2 ISO3082 Datasheet Preview Page 3

Datasheet Details

Part number:

ISO3082, ISO3080

Manufacturer:

Texas Instruments ↗

File Size:

1.31 MB

Description:

5-v full- and half-duplex rs-485 transceivers.

Note:

This datasheet PDF includes multiple part numbers: ISO3082, ISO3080.
Please refer to the document for exact specifications by model.
