ISO35T Datasheet - Texas Instruments

3.3V RS-485 Transceiver

ISO35T Features

* 1 Designed for RS-485 and RS-422 Applications

* Signaling Rates up to 1 Mbps

* 1/8 Unit Load

* up to 256 Nodes on a Bus

* Thermal Shutdown Protection

* Typical Efficiency > 60% (ILOAD = 100 mA) - See SLUU470

* Low-Driver Bus Capacitance 16 pF

ISO35T General Description

The ISO35T is an isolated differential line transceiver with integrated oscillator outputs that provide the primary voltage for an isolation transformer. The device is a full-duplex differential line transceiver for RS-485 and RS-422 applications that can easily be configured for half-duplex operati.

ISO35T Datasheet (1.74 MB)

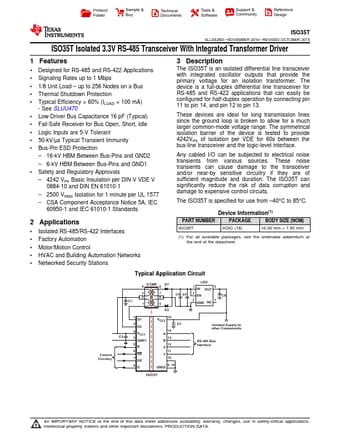

ISO35T Datasheet Preview — Preview of ISO35T PDF

Datasheet Details

Part number:

ISO35T

Manufacturer:

Texas Instruments ↗

File Size:

1.74 MB

Description:

3.3v rs-485 transceiver.
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community Reference Design ISO35T SLLSE26D NOVEMBER 2010
