ISO6720 - General Purpose Basic Dual-Channel Digital Isolators

ISO6720 Description

ISO6720, ISO6721, ISO6721R SLLSFJ0F * JANUARY 2020 * REVISED FEBRUARY 2023 ISO672x General Purpose Basic Dual-Channel Digital Isolator.
The ISO672xB devices are high-performance, dualchannel digital isolators ideal for cost sensitive applications requiring up to 3000 VRMS (D package).

ISO6720 Features

* Functional Safety-Capable
* Documentation available to aid functional safety system design: ISO6720, ISO6721
* 50-Mbps data rate
* Robust isolation barrier:
* High lifetime at 450 VRMS working voltage
* Up to 3000 VRMS isolation rating
* ±150

ISO6720 Applications

* Power supplies
* Grid, Electricity meter
* Motor drives
* Factory automation
* Building automation
* Lighting

📥 Download Datasheet

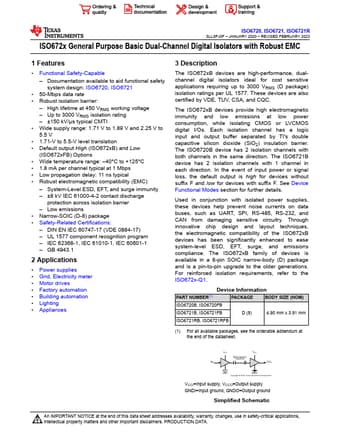

Preview of ISO6720 PDF
datasheet Preview Page 2 datasheet Preview Page 3
