ISO6721, ISO6720 Datasheet - Texas Instruments

ISO6721 General Purpose Basic Dual-Channel Digital Isolators

The ISO672xB devices are high-performance, dualchannel digital isolators ideal for cost sensitive applications requiring up to 3000 VRMS (D package) isolation ratings per UL 1577. These devices are also certified by VDE, TUV, CSA, and CQC. The ISO672xB devices provide high electromagnetic immunity.

ISO6721 Features

* Functional Safety-Capable

* Documentation available to aid functional safety system design: ISO6720, ISO6721

* 50-Mbps data rate

* Robust isolation barrier:

* High lifetime at 450 VRMS working voltage

* Up to 3000 VRMS isolation rating

* ±150

ISO6720-etcTI.pdf

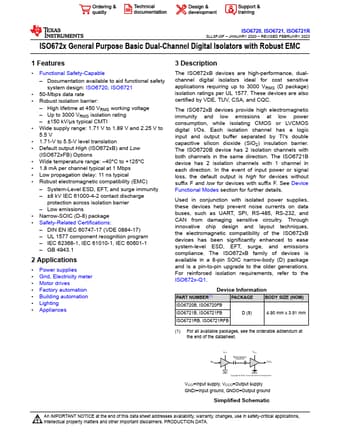

ISO6721 Datasheet Preview — This datasheet PDF includes multiple part numbers: ISO6721, ISO6720. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ISO6721, ISO6720

Manufacturer:

Texas Instruments ↗

File Size:

3.11 MB

Description:

General purpose basic dual-channel digital isolators.

Note:

This datasheet PDF includes multiple part numbers: ISO6721, ISO6720.
Please refer to the document for exact specifications by model.
