ISO6740 Datasheet - Texas Instruments

ISO6740 General-Purpose Reinforced Quad-Channel Digital Isolators

The ISO674x devices are high-performance, quadchannel digital isolators ideal for cost-sensitive applications requiring up to 5000 VRMS isolation ratings per UL 1577. These devices are also certified by VDE, TUV, CSA, and CQC. The ISO674x devices provide high electromagnetic immunity and low emiss.

ISO6740 Features

* Functional Safety-Capable

* Documentation available to aid functional safety system design: ISO6740, ISO6741, ISO6742

* 50 Mbps data rate

* Robust isolation barrier:

* High lifetime at 1500 VRMS working voltage

* Up to 5000 VRMS isolation rating

ISO6740-etcTI.pdf

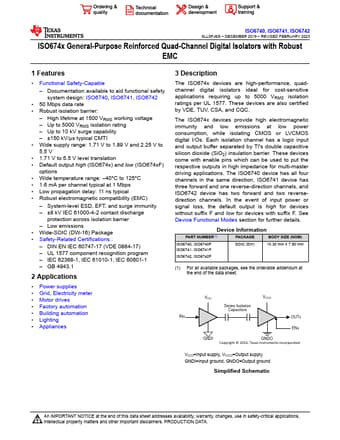

ISO6740 Datasheet Preview — Preview of ISO6740 PDF

Datasheet Details

Part number:

ISO6740

Manufacturer:

Texas Instruments ↗

File Size:

3.36 MB

Description:

General-purpose reinforced quad-channel digital isolators.
