ISO6760 - General-Purpose Six-Channel Reinforced Digital Isolators

Texas Instruments

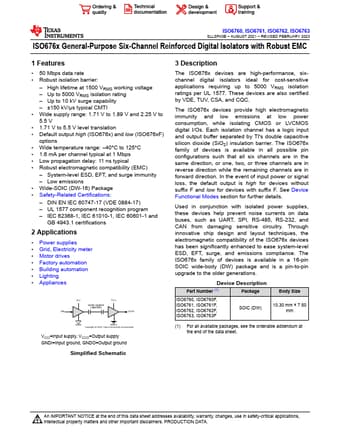

ISO6760 Datasheet Preview — Preview of ISO6760 PDF

Datasheet Details

Part number	ISO6760
Manufacturer	Texas Instruments ↗
File Size	2.95 MB
Description	General-Purpose Six-Channel Reinforced Digital Isolators
Datasheet	ISO6760-etcTI.pdf

ISO6760 Product details

Description

The ISO676x devices are high-performance, sixchannel digital isolators ideal for cost-sensitive applications requiring up to 5000 VRMS isolation ratings per UL 1577.

Features

50 Mbps data rate.
Robust isolation barrier:.
High lifetime at 1500 VRMS working voltage.
Up to 5000 VRMS isolation rating.
Up to 10 kV surge capability.
±150 kV/μs typical CMTI.
Wide supply range: 1.71 V to 1.89 V and 2.25 V to 5.5 V.
1.71 V to 5.5 V level translation.
Default output high (ISO676x) and low (ISO676xF) options.
Wide temperature range:.
40°C to 125°C.
1.6 mA per channel typi.
