ISO6760F, ISO6760 Datasheet - Texas Instruments

ISO6760F, ISO6760, General-Purpose Six-Channel Reinforced Digital Isolators

ISO6760, ISO6761, ISO6762, ISO6763 SLLSFK0E * AUGUST 2021 * REVISED FEBRUARY 2023 ISO676x General-Purpose Six-Channel Reinforced Digit.
The ISO676x devices are high-performance, sixchannel digital isolators ideal for cost-sensitive applications requiring up to 5000 VRMS isolation rati.

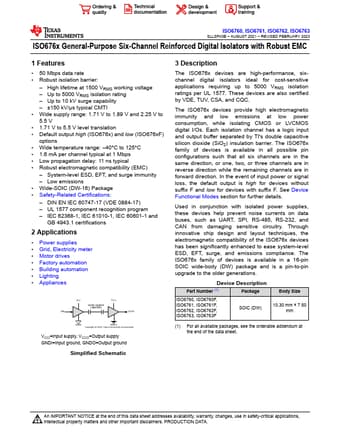

datasheet Preview Page 1 from Datasheet4u.com

ISO6760-etcTI.pdf

ISO6760F Datasheet Preview — This datasheet PDF includes multiple part numbers: ISO6760F, ISO6760. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ISO6760F, ISO6760

Manufacturer:

Texas Instruments ↗

File Size:

2.95 MB

Description:

General-Purpose Six-Channel Reinforced Digital Isolators

Note:

This datasheet PDF includes multiple part numbers: ISO6760F, ISO6760.
Please refer to the document for exact specifications by model.

Features

* 50 Mbps data rate
* Robust isolation barrier:
* High lifetime at 1500 VRMS working voltage
* Up to 5000 VRMS isolation rating
* Up to 10 kV surge capability
* ±150 kV/μs typical CMTI
* Wide supply range: 1.71 V to 1.89 V and 2.25 V to 5.5 V

Applications

* Power supplies
* Grid, Electricity meter
* Motor drives
* Factory automation
* Building automation
* Lighting
* Appliances VCCI VCCO Series Isolation Capacitors INx OUTx GNDI GNDO Copyright © 2016, Texas Instruments Incorporated VCCI=
