ISO6762, ISO6760 Datasheet - Texas Instruments

ISO6762 General-Purpose Six-Channel Reinforced Digital Isolators

The ISO676x devices are high-performance, sixchannel digital isolators ideal for cost-sensitive applications requiring up to 5000 VRMS isolation ratings per UL 1577. These devices are also certified by VDE, TUV, CSA, and CQC. The ISO676x devices provide high electromagnetic immunity and low emissi.

ISO6762 Features

* 50 Mbps data rate

* Robust isolation barrier:

* High lifetime at 1500 VRMS working voltage

* Up to 5000 VRMS isolation rating

* Up to 10 kV surge capability

* ±150 kV/μs typical CMTI

* Wide supply range: 1.71 V to 1.89 V and 2.25 V to 5.5 V

ISO6760-etcTI.pdf

This datasheet PDF includes multiple part numbers: ISO6762, ISO6760. Please refer to the document for exact specifications by model.

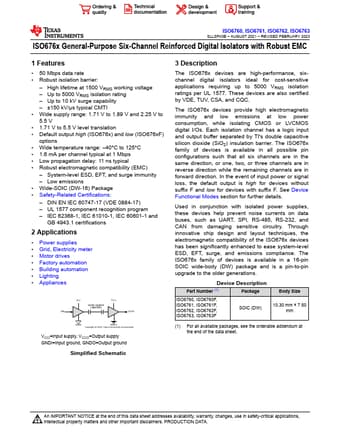

ISO6762 Datasheet Preview Page 2 ISO6762 Datasheet Preview Page 3

Datasheet Details

Part number:

ISO6762, ISO6760

Manufacturer:

Texas Instruments ↗

File Size:

2.95 MB

Description:

General-purpose six-channel reinforced digital isolators.

Note:

This datasheet PDF includes multiple part numbers: ISO6762, ISO6760.
Please refer to the document for exact specifications by model.
