ISO6762-Q1, ISO6760-Q1, General-Purpose Six-Channel Automotive Reinforced Digital Isolators

ISO6760-Q1, ISO6761-Q1, ISO6762-Q1, ISO6763-Q1 SLLSFK2C * AUGUST 2021 * REVISED MAY 2023 ISO676x-Q1 General-Purpose Six-Channel Automo.
The ISO676x-Q1 devices are high-performance, six-channel digital isolators ideal for cost-sensitive applications requiring up to 5000 VRMS isolation.

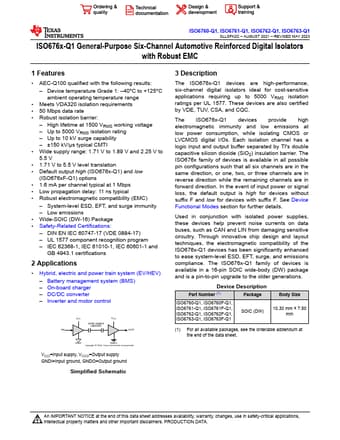

datasheet Preview Page 1 from Datasheet4u.com

ISO6760-Q1-etcTI.pdf

ISO6762-Q1 Datasheet Preview — This datasheet PDF includes multiple part numbers: ISO6762-Q1, ISO6760-Q1. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ISO6762-Q1, ISO6760-Q1

Manufacturer:

Texas Instruments ↗

File Size:

2.90 MB

Description:

General-Purpose Six-Channel Automotive Reinforced Digital Isolators

Note:

This datasheet PDF includes multiple part numbers: ISO6762-Q1, ISO6760-Q1.
Please refer to the document for exact specifications by model.

Features

* AEC-Q100 qualified with the following results:
* Device temperature Grade 1:
* 40°C to +125°C ambient operating temperature range
* Meets VDA320 isolation requirements
* 50 Mbps data rate
* Robust isolation barrier:
* High lifetime at 1500 VRM

Applications

* Hybrid, electric and power train system (EV/HEV)
* Battery management system (BMS)
* On-board charger
* DC/DC converter
* Inverter and motor control VCCI VCCO Series Isolation Capacitors INx OUTx GNDI GNDO Copyright © 2016, Texas Instruments Incorpora
