ISO7760

reinforced six-channel digital isolator

Texas Instruments

ISO7760 Features

* 100 Mbps data rate

* Robust isolation barrier:

* >100-Year projected lifetime

* Up to 5000 VRMS isolation rating

* Up to 12.8 kV surge capability

* ±100 kV/μs Typical CMTI

* Wide supply range: 2.25 V to 5.5 V

* 2.25-V to 5.5-V Level t

ISO7760 General Description

The ISO776x devices are high-performance, sixchannel digital isolators with 5000-VRMS (DW package) and 3000-VRMS (DBQ package) isolation ratings per UL 1577. This family of devices is also certified according to VDE, CSA, TUV and CQC. The ISO776x family of devices provides highelectromagnetic immuni.

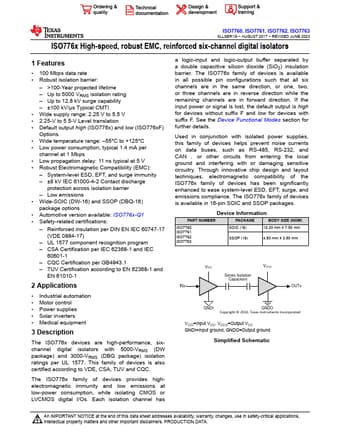

ISO7760 Datasheet (2.21 MB)

ISO7760 Datasheet Preview — Preview of ISO7760 PDF

Datasheet Details

Part number:

ISO7760

Manufacturer:

Texas Instruments ↗

File Size:

2.21 MB

Description:

Reinforced six-channel digital isolator.
ISO7760, ISO7761, ISO7762, ISO7763 SLLSER1G

* AUGUST 2017

* REVISED JUNE 2023 ISO776x High-speed, robust EMC, reinforced six-channel d.
