ISO7762-Q1

reinforced six-channel digital isolators

ISO7762-Q1 Features

* Qualified for automotive applications

* AEC-Q100 qualified with the following results:

* Device temperature grade 1:

* 40°C to +125°C ambient temperature range

* Device HBM ESD classification level 3A

* Device CDM ESD classification level C6

ISO7762-Q1 General Description

The ISO776x-Q1 devices are high-performance, sixchannel digital isolators with 5000VRMS (DW package) and 3000VRMS (DBQ package) isolation ratings per UL 1577. This family of devices is also certified according to VDE, CSA, TUV and CQC. The ISO776x-Q1 family of devices provides highelectromagnetic .

ISO7762-Q1 Datasheet (2.28 MB)

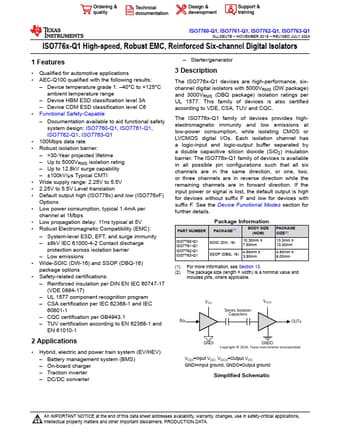

Preview of ISO7762-Q1 PDF

Datasheet Details

Part number:

ISO7762-Q1

Manufacturer:

Texas Instruments ↗

File Size:

2.28 MB

Description:

Reinforced six-channel digital isolators.
ISO7760-Q1, ISO7761-Q1, ISO7762-Q1, ISO7763-Q1 SLLSEU7E

* NOVEMBER 2018

* REVISED JULY 2024 ISO776x-Q1 High-speed, Robust EMC, Reinfor.
