LM25085A 42V Constant On-Time PFET Buck Switching Controller

📥 Download Datasheet Datasheet Preview Page 1

Description

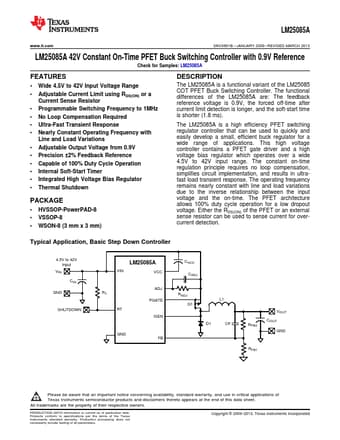

LM25085A www.ti.com SNVS601B * JANUARY 2009 * REVISED MARCH 2013 LM25085A 42V Constant On-Time PFET Buck Switching Controller with .
The LM25085A is a functional variant of the LM25085 COT PFET Buck Switching Controller.

📥 Download Datasheet

Preview of LM25085A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* 1
* 2 Wide 4.5V to 42V Input Voltage Range
* Adjustable Current Limit using RDS(ON) or a Current Sense Resistor
* Programmable Switching Frequency to 1MHz
* No Loop Compensation Required
* Ultra-Fast Transient Response
* Nearly Constant Operating Freque

Applications

* This high voltage controller contains a PFET gate driver and a high voltage bias regulator which operates over a wide 4.5V to 42V input range. The constant on-time regulation principle requires no loop compensation, simplifies circuit implementation, and results in ultrafast load transient response
