LM25088, Wide Input Range Non-Synchronous Buck Controllers

LM25088, LM25088-Q1 SNVS609K * DECEMBER 2008 * REVISED JUNE 2022 LM25088, LM25088-Q1 Wide Input Range Non-Synchronous Buck Controllers.
The LM25088 high voltage non-synchronous buck controller features all the necessary functions to implement an efficient, high-voltage buck converter.

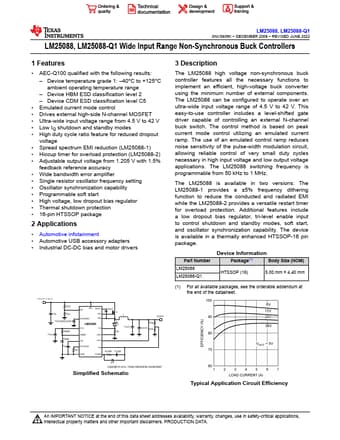

datasheet Preview Page 1 from Datasheet4u.com

LM25088-etcTI.pdf

LM25088 Datasheet Preview — Preview of LM25088 PDF

Datasheet Details

Part number:

LM25088

Manufacturer:

Texas Instruments ↗

File Size:

1.56 MB

Description:

Wide Input Range Non-Synchronous Buck Controllers

Features

* AEC-Q100 qualified with the following results:
* Device temperature grade 1:
* 40°C to +125°C ambient operating temperature range
* Device HBM ESD classification level 2
* Device CDM ESD classification level C5
* Emulated current mode control

Applications

* Automotive infotainment
* Automotive USB accessory adapters
* Industrial DC-DC bias and motor drivers VIN (4.5 V-42 V) RUV2 CIN RUV1 CDITHER/RESTART CVCC RRAMP CRAMP EN VIN BOOT HG DITH/RES SW LM25088 VCC CS RAMP SS CSG OUT CBOOT Q L D COUT1 Rs CSS RT/SY
