LM5160 2-A Synchronous Buck / Fly-Buck DC/DC Converter

The LM5160/A is a 65-V, 2-A synchronous step-down converter with integrated high-side and low-side MOSFETs. The adaptive constant on-time control scheme requires no loop compensation and supports high step-down ratios with fast transient response. An internal feedback amplifier maintains ±1% output .

LM5160 Features

* 1 Wide 4.5-V to 65-V Input Voltage Range

* Integrated High-Side and Low-Side Switches

* No External Schottky Diode Required

* 2-A Maximum Load Current

* Adaptive Constant On-Time Control

* No External Loop Compensation

* Fast Transient Respons

LM5160 Datasheet (2.06 MB)

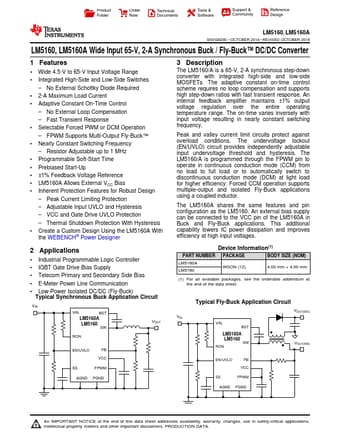

Preview of LM5160 PDF

Datasheet Details

Part number:

LM5160

Manufacturer:

Texas Instruments ↗

File Size:

2.06 MB

Description:

2-a synchronous buck / fly-buck dc/dc converter.
