LM5160-Q1 Datasheet - Texas Instruments

LM5160-Q1 Wide Input 65-V 2-A Synchronous Buck / Fly-Buck DC/DC Converter

The LM5160-Q1 is a 65-V, 2-A synchronous stepdown converter with integrated high-side and low-side MOSFETs. The adaptive constant on-time control scheme requires no loop compensation and supports high step-down ratios with fast transient response. An internal feedback amplifier maintains ±1% output .

LM5160-Q1 Features

* 1 AEC-Q100 Qualified for Automotive Applications

* Temperature Grade 1:

* 40°C ≤ TA ≤ 125°C

* HBM ESD Classification Level 2

* CDM ESD Classification Level C5

* Wide 4.5-V to 65-V Input Voltage Range

* Integrated High-Side and Low-Side Switches

LM5160-Q1 Datasheet (1.79 MB)

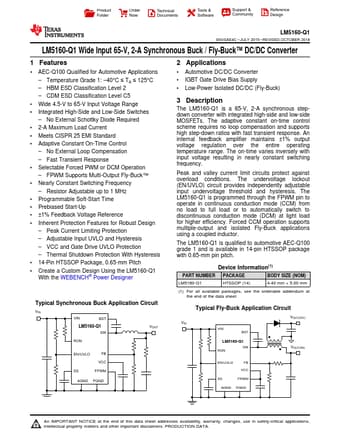

Preview of LM5160-Q1 PDF
