LM5161 Datasheet - Texas Instruments

LM5161 Wide Input 100-V 1-A Synchronous Buck/Fly-Buck Converter

The LM5161 is a 100-V, 1-A synchronous step-down converter with integrated high-side and low-side MOSFETs. The constant-ON-time control scheme requires no loop compensation and supports high step-down ratios with fast transient response. An internal feedback amplifier maintains ±1% output voltage re.

LM5161 Features

* 1 Wide 4.5-V to 100-V Input Voltage Range

* Integrated High-Side and Low-Side Switches

* No Schottky Diode Required

* 1-A Maximum Load Current

* Constant ON-Time Control

* No External Loop Compensation

* Fast Transient Response

* Selec

LM5161 Datasheet (2.04 MB)

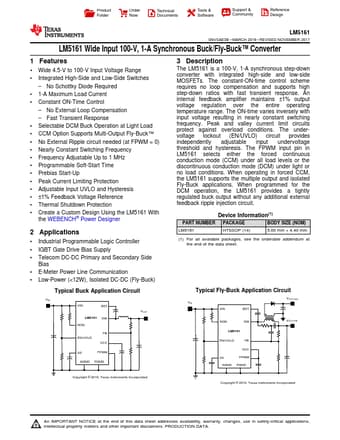

Preview of LM5161 PDF

Datasheet Details

Part number:

LM5161

Manufacturer:

Texas Instruments ↗

File Size:

2.04 MB

Description:

Wide input 100-v 1-a synchronous buck/fly-buck converter.
