LM5163H-Q1

Automotive Buck Converter

LM5163H-Q1 Features

* AEC-Q100-qualified for automotive applications

* Device temperature grade 1:

* 40°C to +125°C, ambient temperature range

* Designed for reliable and rugged applications

* Wide input voltage range of 6 V to 100 V

* Junction temperature range:

LM5163H-Q1 General Description

Coolants in powertrain systems can be expensive. There is an increase in ambient temperature requirements in powertrain applications as manufacturers reduce cost by decreasing the use of coolants in the system (water, air). In addition, power hungry systems in ADAS (camera modules) and powertrain o.

LM5163H-Q1 Datasheet (2.55 MB)

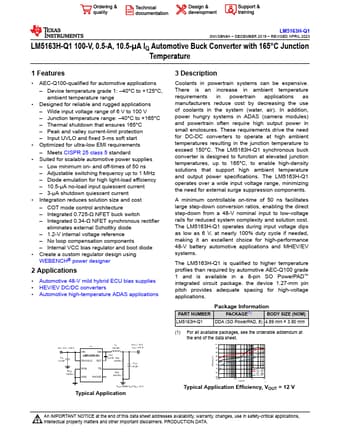

Preview of LM5163H-Q1 PDF

Datasheet Details

Part number:

LM5163H-Q1

Manufacturer:

Texas Instruments ↗

File Size:

2.55 MB

Description:

Automotive buck converter.
LM5163H-Q1 SNVSBN8A

* DECEMBER 2019

* REVISED APRIL 2023 LM5163H-Q1 100-V, 0.5-A, 10.5-µA IQ Automotive Buck Converter with 165°C Junc.
