LM6172QML

Voltage Feedback Amplifier

LM6172QML Features

* 1

* 234 Available with Radiation Specification

* High Dose Rate 300 krad(Si)

* ELDRS Free 100 krad(Si)

* Easy to Use Voltage Feedback Topology

* High Slew Rate 3000V/μs

* Wide Unity-Gain Bandwidth 100MHz

* Low Supply Current 2.3mA / Amplifier

LM6172QML General Description

The LM6172 is a dual high speed voltage feedback amplifier. It is unity-gain stable and provides excellent DC and AC performance. With 100MHz unity-gain bandwidth, 3000V/μs slew rate and 50mA of output current per channel, the LM6172 offers high performance in dual amplifiers; yet it only consumes 2.

LM6172QML Datasheet (1.71 MB)

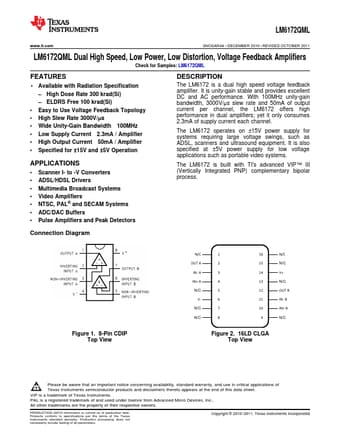

Preview of LM6172QML PDF

Datasheet Details

Part number:

LM6172QML

Manufacturer:

Texas Instruments ↗

File Size:

1.71 MB

Description:

Voltage feedback amplifier.
LM6172QML www.ti.com SNOSAR4A

* DECEMBER 2010

* REVISED OCTOBER 2011 LM6172QML Dual High Speed, Low Power, Low Distortion, Voltage .
