LM6118

Fast Settling Dual Operational Amplifiers

LM6118 Features

* Typical j Low offset voltage: j 0.01% settling time: j Slew rate Av =

* 1: j Slew rate Av = +1: j Gain bandwidth: j Total supply current: j Output drives 50Ω load ( ± 1V) 0.2 mV 400 ns 140 V/µs 75 V/µs 17 MHz 5.5 mA Applications n D/A converters n Fast integrators n Active filters Connecti

LM6118 General Description

The LM6118/LM6218 are monolithic fast-settling unity-gain-compensated dual operational amplifiers with ± 20 mA output drive capability. The PNP input stage has a typical bias current of 200 nA, and the operating supply voltage is ± 5V to ± 20V. These dual op amps use slew enhancement with special mi.

LM6118 Datasheet (836.77 KB)

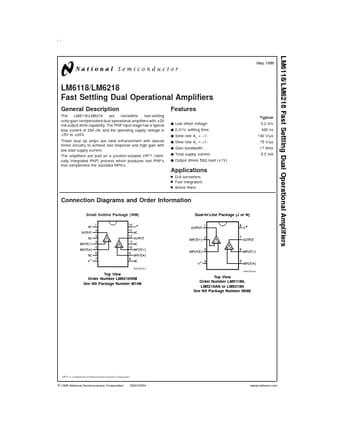

Preview of LM6118 PDF

Datasheet Details

Part number:

LM6118

Manufacturer:

National Semiconductor

File Size:

836.77 KB

Description:

Fast settling dual operational amplifiers.
