LM6125 - High Speed Buffer

LM6125 Description

LM6125/LM6225/LM6325 High Speed Buffer December 1994 LM6125/LM6225/LM6325 High Speed Buffer General .
The LM6125 family of high speed unity gain buffers slew at 800 V/µs and have a small signal bandwidth of 50 MHz while driving a 50Ω load.

LM6125 Features

* not found in power buffers; these include current limit, thermal shutdown, electronic shutdown, and an error flag that warns of fault conditions. These buffers are built with National’s VIP™ (Vertically Integrated PNP) process which provides fast PNP transistors that are true complements to the alre

📥 Download Datasheet

Preview of LM6125 PDF

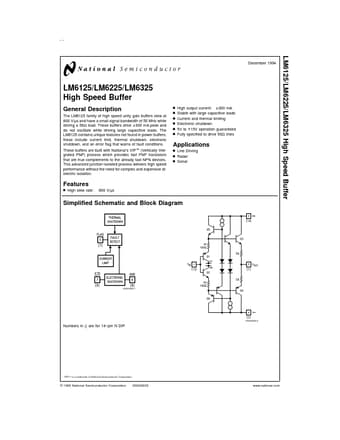

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LM6125
Manufacturer
National Semiconductor
File Size
261.96 KB
Datasheet
LM6125_NationalSemiconductor.pdf
Description
High Speed Buffer
