LM61460-Q1

Automotive Low EMI Synchronous Step-Down Converter

LM61460-Q1 Features

* AEC-Q100 qualified for automotive applications

* Temperature grade 1:

* 40°C to +150°C, TJ

* Functional Safety-Capable

* Documentation available to aid functional safety system design

* Optimized for ultra low EMI requirements

* Hotrod™ packag

LM61460-Q1 General Description

The LM61460-Q1 is an automotive-focused, high-performance, DC-DC synchronous step-down converter. With integrated high-side and low-side MOSFETs, up to 6 A of output current is delivered over a wide input range of 3.0 V to 36 V; tolerant of 42 V, easing input surge protection design. The LM61460-Q1.

LM61460-Q1 Datasheet (3.15 MB)

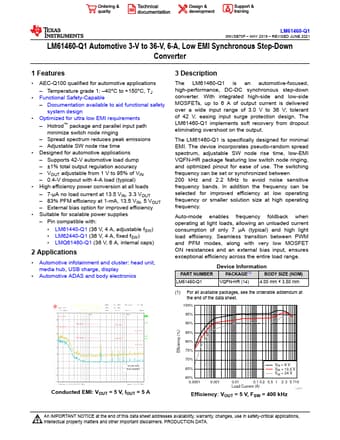

Preview of LM61460-Q1 PDF

Datasheet Details

Part number:

LM61460-Q1

Manufacturer:

Texas Instruments ↗

File Size:

3.15 MB

Description:

Automotive low emi synchronous step-down converter.
LM61460-Q1 SNVSB70F

* MAY 2019

* REVISED JUNE 2021 LM61460-Q1 Automotive 3-V to 36-V, 6-A, Low EMI Synchronous Step-Down Converter 1 .
