LM614

Quad Operational Amplifier and Adjustable Reference

National Semiconductor

LM614 Features

* Op Amp n Low operating current: 300 µA n Wide supply voltage range: 4V to 36V n Wide common-mode range: V

* to (V+

* 1.8V) n Wide differential input voltage: ± 36V n Available in plastic package rated for Military Temperature Range Operation Reference n Adjustable output voltage: 1.2V

LM614 General Description

The LM614 consists of four op-amps and a programmable voltage reference in a 16-pin package. The op-amp out-performs most single-supply op-amps by providing higher speed and bandwidth along with low supply current. This device was specifically designed to lower cost and board space requirements in t.

LM614 Datasheet (857.37 KB)

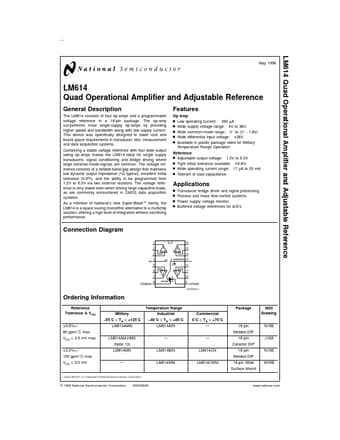

LM614 Datasheet Preview — Preview of LM614 PDF

Datasheet Details

Part number:

LM614

Manufacturer:

National Semiconductor

File Size:

857.37 KB

Description:

Quad operational amplifier and adjustable reference.
