LM61480-Q1

Automotive Buck Converter

LM61480-Q1 Features

* AEC-Q100 qualified for automotive applications:

* Temperature grade 1:

* 40°C to +125°C, TA

* Functional Safety-Capable

* Documentation available to aid functional safety system design

* Input voltage range from 3 V to 36 V

* RESET output with

LM61480-Q1 General Description

The LM6x4xx-Q1 buck regulator family are automotive-focused regulators providing either fixed or an adjustable output voltage which can be set from 1 V to 95% of expected input voltage. These regulators operate under a wide input voltage range of 3 to 36V and has transient tolerance up to 42 V. Th.

LM61480-Q1 Datasheet (4.60 MB)

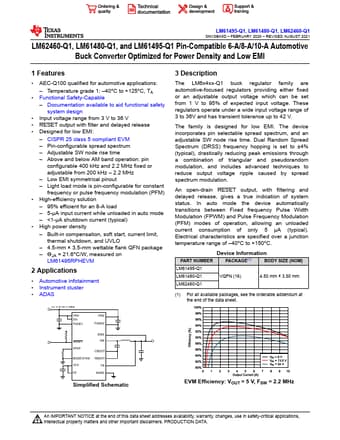

Preview of LM61480-Q1 PDF

Datasheet Details

Part number:

LM61480-Q1

Manufacturer:

Texas Instruments ↗

File Size:

4.60 MB

Description:

Automotive buck converter.
LM61495-Q1, LM61480-Q1, LM62460-Q1 SNVSBA0D

* FEBRUARY 2020

* REVISED AUGUST 2021 LM62460-Q1, LM61480-Q1, and LM61495-Q1 Pin-Compatibl.
