LM6144

High Speed/Low Power 17 MHz Rail-to-Rail Input-Output Operational Amplifiers

LM6144 Features

* At VS = 5V. Typ unless noted. n Rail-to-rail input CMVR

* 0.25V to 5.25V n Rail-to-rail output swing 0.005V to 4.995V n Wide gain-bandwidth: 17 MHz at 50 kHz (typ) n Slew rate: Small signal, 5V/µs Large signal, 30V/µs n Low supply current 650 µA/Amplifier n Wide supply range 1.8V to 24V n CMR

LM6144 General Description

Using patent pending new circuit topologies, the LM6142/44 provides new levels of performance in applications where low voltage supplies or power limitations previously made compromise necessary. Operating on supplies of 1.8V to over 24V, the LM6142/44 is an excellent choice for battery operated sys.

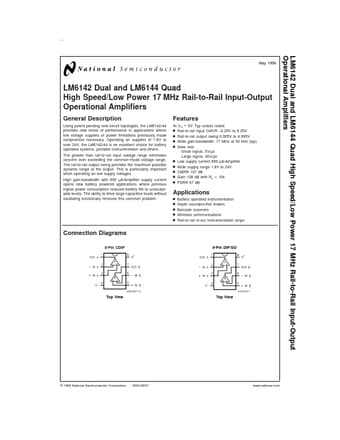

LM6144 Datasheet (404.46 KB)

Preview of LM6144 PDF

Datasheet Details

Part number:

LM6144

Manufacturer:

National Semiconductor

File Size:

404.46 KB

Description:

High speed/low power 17 mhz rail-to-rail input-output operational amplifiers.
LM6142 Dual and LM6144 Quad High Speed/Low Power 17 MHz Rail-to-Rail Input-Output Operational Amplifiers May 1999 LM6142 Dual and LM6144 Quad High S.
