LM61440-Q1 Datasheet - Texas Instruments

LM61440-Q1 Automotive Low EMI Synchronous Step-Down Converter

The LM61440-Q1 is an automotive-focused, high-performance, DC-DC synchronous step-down converter. With integrated high-side and low-side MOSFETs, up to 4 A of output current is delivered over a wide input range of 3.0 V to 36 V; tolerant of 42 V, easing input surge protection design. The LM61440-Q1.

LM61440-Q1 Features

* AEC-Q100 qualified with the following results:

* Temperature grade 1:

* 40°C to 150°C, TJ

* Functional Safety-Capable

* Documentation available to aid functional safety system design

* Optimized for ultra-low EMI requirements

* HotRod package

LM61440-Q1-etcTI.pdf

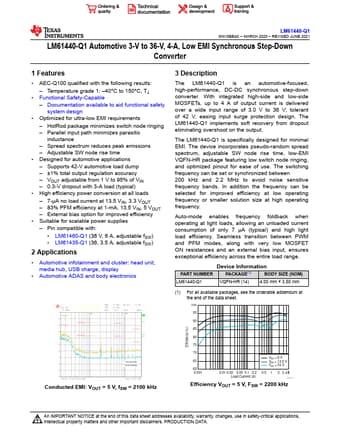

Preview of LM61440-Q1 PDF
LM61440-Q1 Datasheet Preview Page 2 LM61440-Q1 Datasheet Preview Page 3

Datasheet Details

Part number:

LM61440-Q1

Manufacturer:

Texas Instruments ↗

File Size:

2.57 MB

Description:

Automotive low emi synchronous step-down converter.
