LM6134

Low Power 10 MHz Rail-to-Rail I/O Operational Amplifiers

LM6134 Features

* 1 (For 5V Supply, Typ Unless Noted)

* Rail-to-Rail Input CMVR

* 0.25 V to 5.25 V

* Rail-to-Rail Output Swing 0.01V to 4.99V

* High Gain-Bandwidth, 10 MHz at 20 kHz

* Slew Rate 12 V/μs

* Low Supply Current 360 μA/Amp

* Wide Supply Range

LM6134 General Description

The LM6132/34 provides new levels of speed vs. power performance in applications where low voltage supplies or power limitations previously made compromise necessary. With only 360 μA/amp supply current, the 10 MHz gain-bandwidth of this device supports new portable applications where higher power d.

LM6134 Datasheet (1.72 MB)

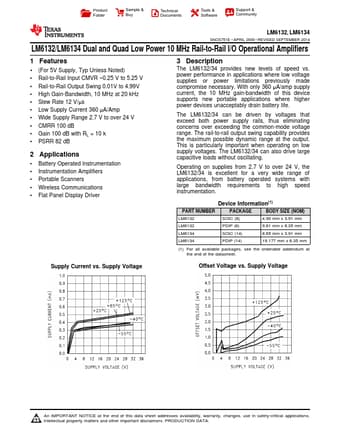

Preview of LM6134 PDF

Datasheet Details

Part number:

LM6134

Manufacturer:

Texas Instruments ↗

File Size:

1.72 MB

Description:

Low power 10 mhz rail-to-rail i/o operational amplifiers.
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community LM6132, LM6134 SNOS751E

* APRIL 2000

* REVIS.
