- Description
- Dual Operational Amplifiers/ Dual Comparators/ and Adjustable Reference
LM613 Description

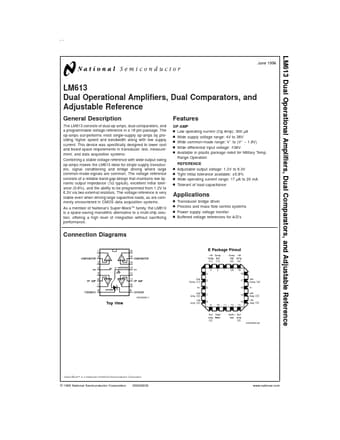

LM613 Dual Operational Amplifiers, Dual Comparators, and Adjustable Reference June 1998 LM613 Dual Operational Amplifiers, Dual Comparators, and Adj.
The LM613 consists of dual op-amps, dual comparators, and a programmable voltage reference in a 16-pin package.
LM613 Features
* OP AMP n Low operating current (Op Amp): 300 µA n Wide supply voltage range: 4V to 36V n Wide common-mode range: V
* to (V+
* 1.8V) n Wide differential input voltage: ± 36V n Available in plastic package rated for Military Temp. Range Operation n n n n REFERENCE Adjustable output volt
LM613 Applications
* n n n n Transducer bridge driver Process and mass flow control systems Power supply voltage monitor Buffered voltage references for A/D’s
Connection Diagrams
E Package Pinout
DS009226-1
Top View
DS009226-48
Super-Block™ is a trademark of National Semiconductor Corporation. © 1999 National Semi
