LM6134 Low Power 10 MHz Rail-to-Rail I/O Operational Amplifiers

The LM6132/34 provides new levels of speed vs power performance in applications where low voltage supplies or power limitations previously made compromise necessary. With only 360 µA/amp supply current, the 10 MHz gain-bandwidth of this device supports new portable applications where higher power de.

LM6134 Features

* (For 5V Supply, Typ Unless Noted) n Rail-to-Rail input CMVR

* 0.25V to 5.25V n Rail-to-Rail output swing 0.01V to 4.99V n High gain-bandwidth, 10 MHz at 20 kHz n Slew rate 12 V/µs n Low supply current 360 µA/Amp n Wide supply range 2.7V to over 24V n CMRR 100 dB n Gain 100 dB with RL = 10k n

LM6134_NationalSemiconductor.pdf

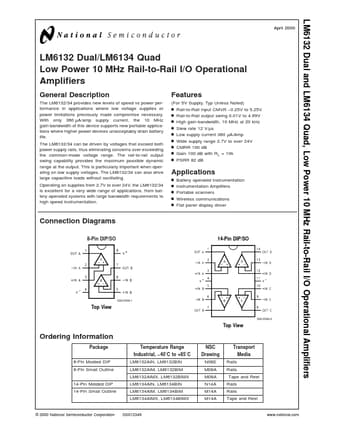

LM6134 Datasheet Preview — Preview of LM6134 PDF

Datasheet Details

Part number:

LM6134

Manufacturer:

National Semiconductor

File Size:

361.93 KB

Description:

Low power 10 mhz rail-to-rail i/o operational amplifiers.
