LM6144 Rail-to-Rail Input-Output Operational Amplifiers

Using patent pending new circuit topologies, the LM6142/LM6144 provides new levels of performance in applications where low voltage supplies or power limitations previously made compromise necessary. Operating on supplies of 1.8V to over 24V, the LM6142/LM6144 is an excellent choice for battery oper.

LM6144 Features

* 1 2At VS = 5V. Typ Unless Noted.

* Rail-to-rail Input CMVR

* 0.25V to 5.25V

* Rail-to-Rail Output Swing 0.005V to 4.995V

* Wide Gain-Bandwidth: 17MHz at 50kHz (typ)

* Slew Rate:

* Small Signal, 5V/μs

* Large Signal, 30V/μs

* Low Supply C

LM6142-etcTI.pdf

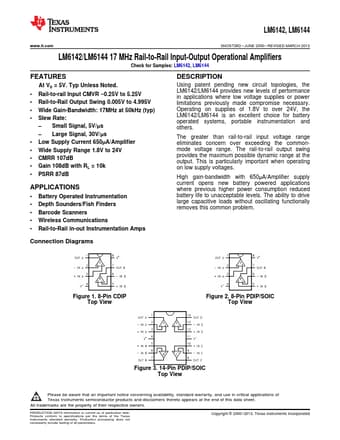

LM6144 Datasheet Preview — This datasheet PDF includes multiple part numbers: LM6144, LM6142. Please refer to the document for exact specifications by model.
