LM833

Dual High-Speed Audio Operational Amplifier

LM833 Features

* 1 Dual-Supply Operation: ±5 V to ±18 V

* Low Noise Voltage: 4.5 nV/√Hz

* Low Input Offset Voltage: 0.15 mV

* Low Total Harmonic Distortion: 0.002%

* High Slew Rate: 7 V/μs

* High-Gain Bandwidth Product: 16 MHz

* High Open-Loop AC Gain: 800 at

LM833 General Description

The LM833 device is a dual operational amplifier with high-performance specifications for use in quality audio and data-signal applications. Dual amplifiers are utilized widely in audio circuits optimized for all preamp and high level stages in PCM and HiFi systems. The LM833 device is pin-for-pin c.

LM833 Datasheet (1.51 MB)

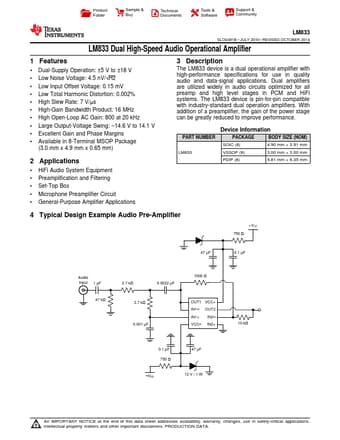

Preview of LM833 PDF

Datasheet Details

Part number:

LM833

Manufacturer:

Texas Instruments ↗

File Size:

1.51 MB

Description:

Dual high-speed audio operational amplifier.
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community LM833 SLOS481B

* JULY 2010

* REVISED OCTOBER.
