LMH6738 Datasheet, Amp, Texas Instruments

LMH6738 Features

  • Amp 1
  • 2 750 MHz
  • 3 dB small signal bandwidth (AV = +1)
  • 85 dBc 3rd harmonic distortion (20 MHz)
  • 2.3 nV/Hz input noise voltage
  • 3300 V/μ

PDF File Details

Part number:

LMH6738

Manufacturer:

Texas Instruments ↗

File Size:

1.30MB

Download:

📄 Datasheet

Description:

Very wideband low distortion triple op amp. The LMH6738 is a very wideband, DC coupled monolithic operational amplifier designed specifically for ultra high resolution video sys

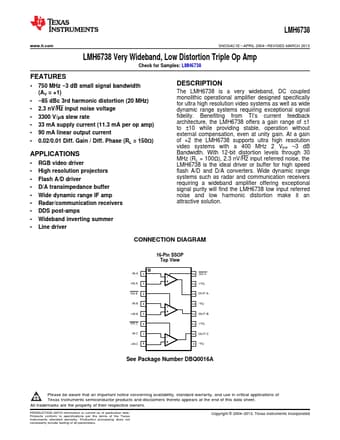

Datasheet Preview: LMH6738 📥 Download PDF (1.30MB)
Page 2 of LMH6738 Page 3 of LMH6738

LMH6738 Application

  • Applications
  • RGB video driver
  • High resolution projectors
  • Flash A/D driver
  • D/A transimpedance buffer
